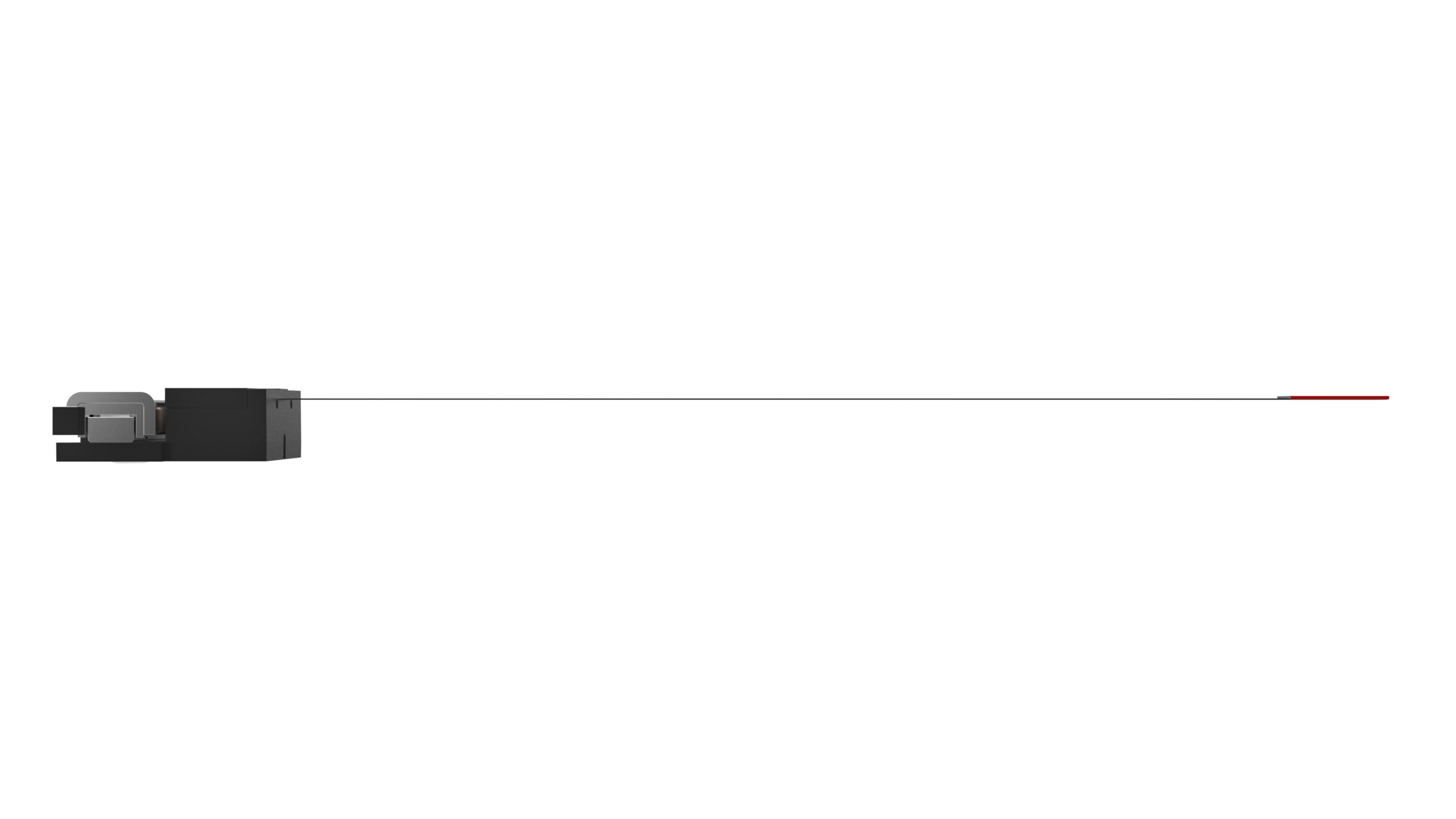

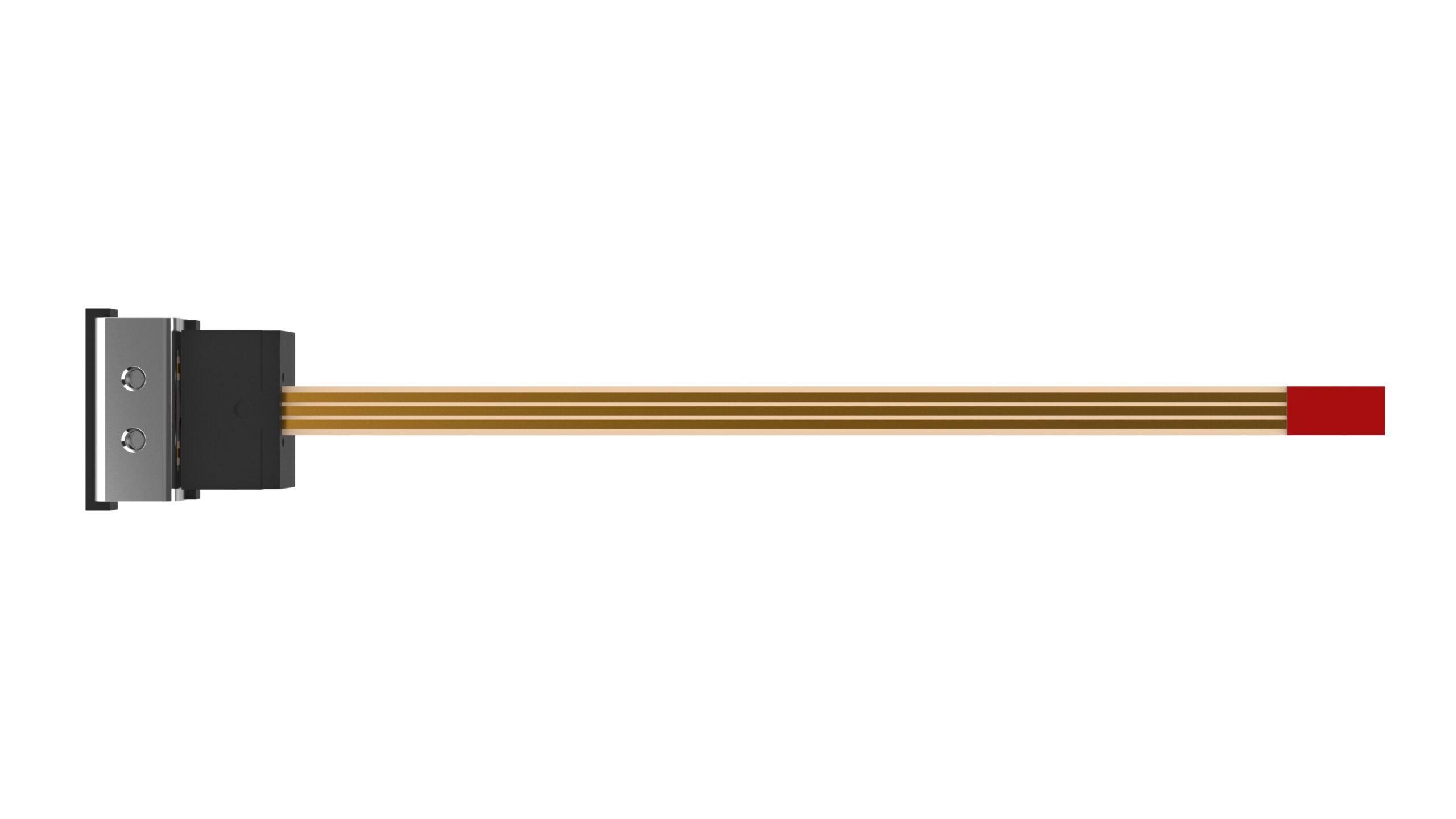

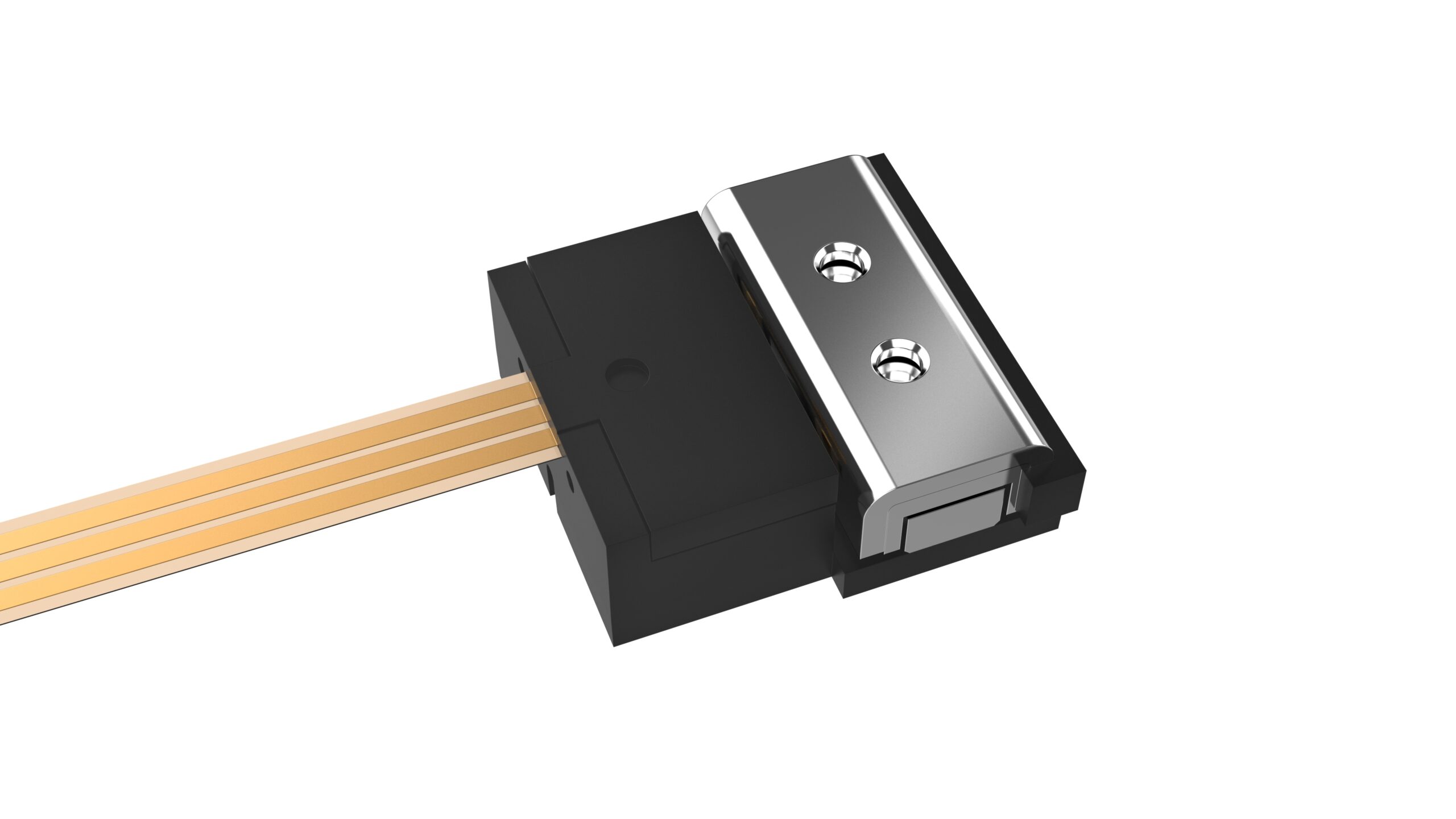

LRMO series piezo linear motor.
Piezo Motor Company’s new range of miniature piezomotors sets new benchmarks for compact, high-performance rotary and linear piezoelectric actuators/motors. We’ve combined lightweight design with superior precision and functionality.
These piezomotors are exceptionally energy-efficient, requiring no power in the hold position while still maintaining full torque and force. This efficiency makes them ideal for demanding OEM applications where performance and cost-effectiveness are paramount.
Designed to operate at low voltage (5,0 VDC) and small currents (e.g., 30 mA), the new PMC piezomotors are available with optional factory-installed encoders and boast several distinctive features:
| Part No. | LRMO-011-0270 |
| Power Supply | 5,0 V DC |
| Push/Pull Force | ≥ 0,2 N |
| Self-Braking Force | ≥ 0,25 N |
| Actuator Response Time | » 30 µs |
| Travel Range | 9,0 mm |
| Max Speed (continuous mode) | » 150 mm/s |
| Minimum Linear Step | < 0,04 µm (<40 nm) |
| Linear Backlash at Change of Direction | < 0,1 µm |
| Elastic Stiffness | » 200 mN/µm |
| Linear Hysteresis | <2,0 µm |
| Pitch | <1 mrad |
| Maximum Moment Mx0.07 Nm | 0,07 Nm |
| Roll | < 0,5 mrad |
| Maximum Moment My | 0,12 Nm |
| Yaw | <1 mrad |
| Maximum Moment Mz | 0,9 Nm |
| Vertical Runout | 3,0 µm |
| Horizontal Runout | 6,0 µm |
| Frequency Response | 4 kHz |
| Operating Temperature | -20 °C to 80 °C |
| Maximum Load (at listed specification) | 20 g |
| Maximum Tolerable Load | 4,2 kgf |
| Max Current (continuous mode) | 300 mA |
| Max. Current at the velocity 10mm/s (PWM mode) | 30-40 mA |
| Max Current over velocity range | 30 mA to 300 mA |
| Actuator Weight | 3,7 g |

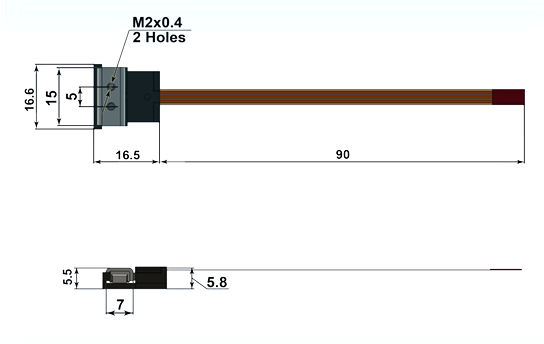

| Actuator Dimensions | 16,6 × 16,5 × 5,8mm |
