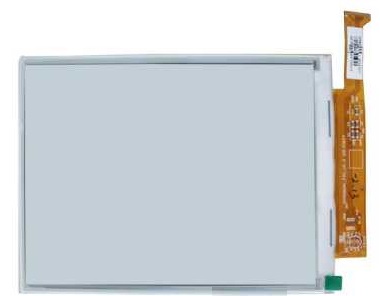

OPM080A1

Features:

768×1024 pixels display
Contrast ratio above 8:1
3:4 apect ratio
Wide viewing angle
Ultra low power consumption
Reflective mode
Bi-stable display
Commercial temperature range
Landscape, portrait modes
Hard-coat antiglare display surface

Technical Data

Mechanical Specifications:

Parameter	Specifications	Unit
Screen Size	8.0	Inch
Display Resolution	768(H)×1024(V)	Pixel
Active Area	122.11×162.82	mm
Pixel Pitch	0.159×0.159	mm
Pixel Configuration	Square
Outline Dimension	134.11(H)×178.56(V)×1.18(D)	mm
Interface	Intel80
Weight	50	g
