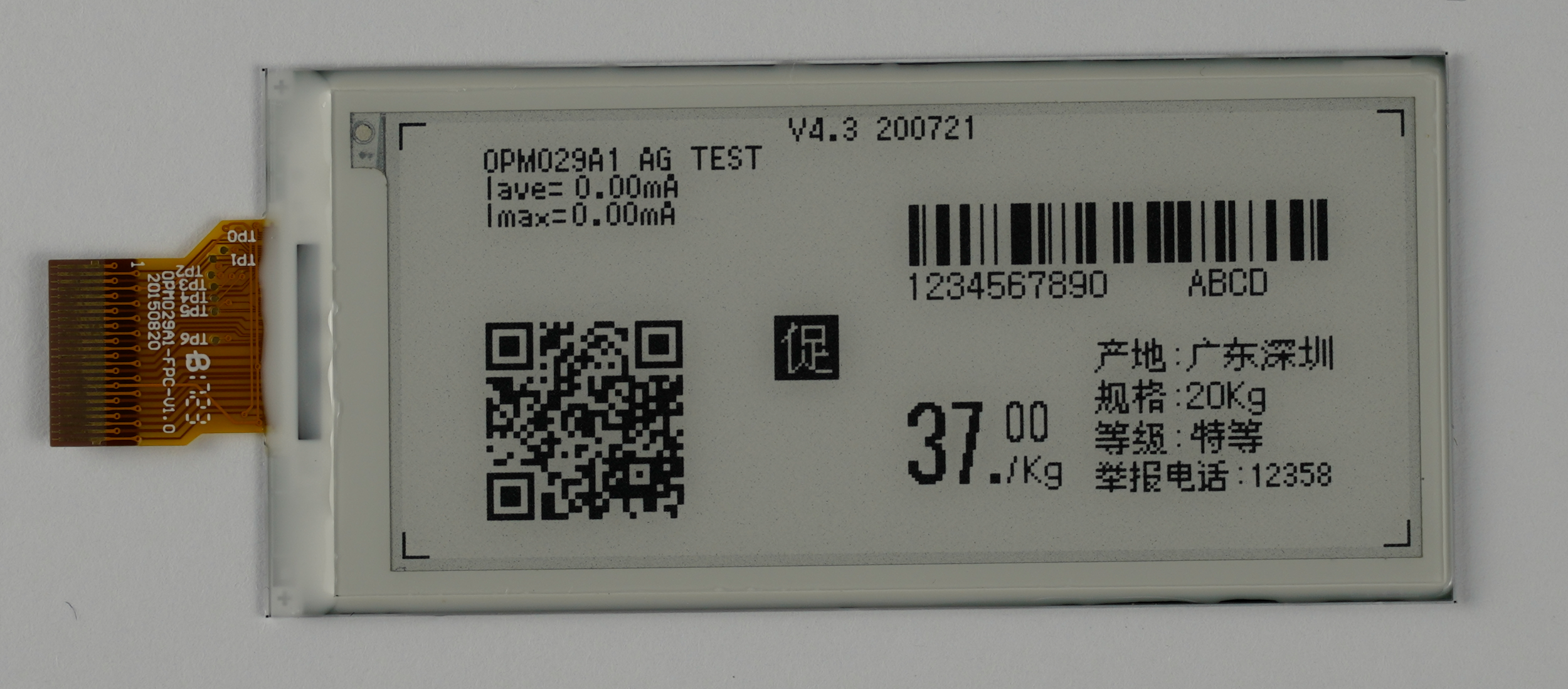

OPM029A1

OPM029A1

Features:

  • 128×296 pixels display
  • White reflectance above 30%
  • Contrast ratio above 8:1
  • Ultra wide viewing angle
  • Ultra low power consumption
  • Pure reflective mode
  • Bi-stable display
  • Landscape, portrait modes
  • Commerical temperature range
  • Hard-coat antiglare display surface
  • Ultra Low current deep sleep mode
  • On chip display RAM
  • Waveform stored in On-chip OTP
  • Serial peripheral interface available
  • On-chip oscillator
  • On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
  • I2C signal master interface to read extemal temperature sensor

Technical Data

Mechanical Specification:

Parameter Specifications Unit
Screen Size 2.9 Inch
Display Resolution 128(H)×296(V) Pixel
Active Area 29.05×66.89 mm
Pixel Pitch 0.227×0.226 mm
Pixel Configuration Rectangle
Outline Dimension 36.7(H)×79.0(V)×1.05(D) mm
Interface SPI
Weight 4.0±0.5 g
